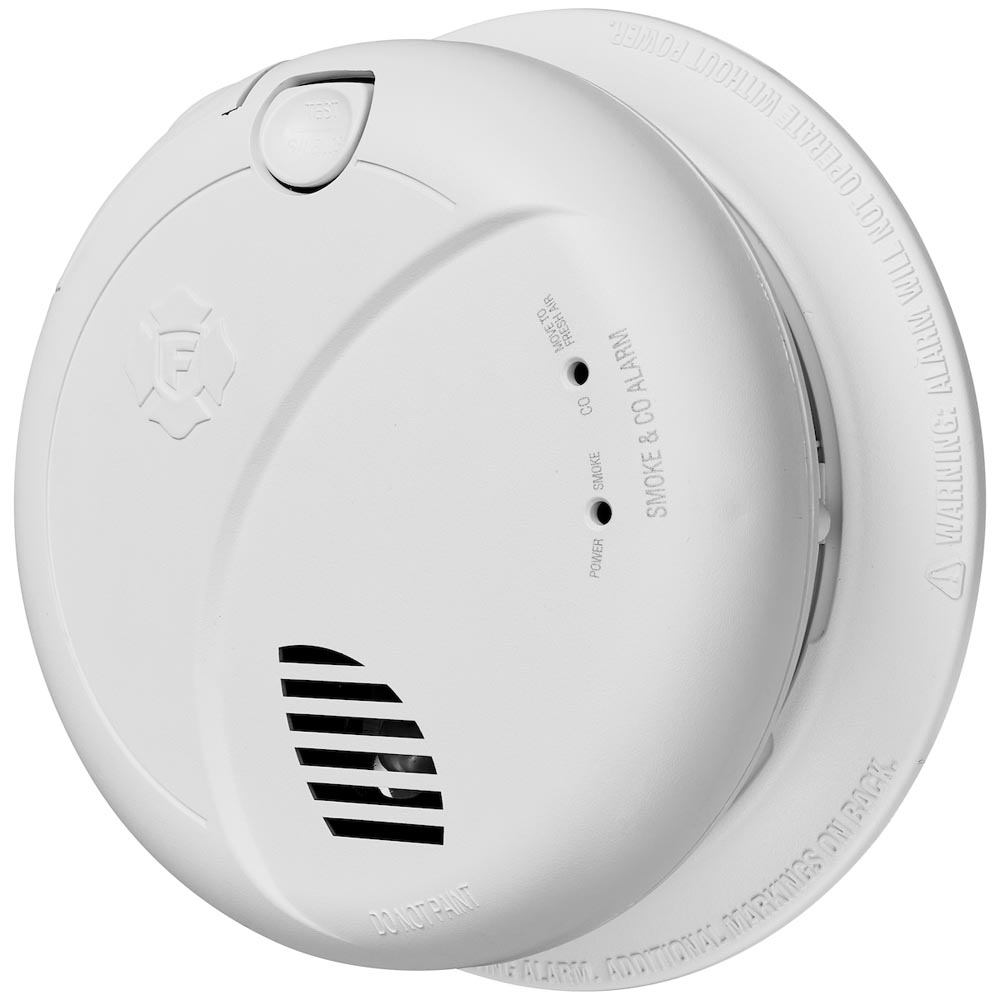

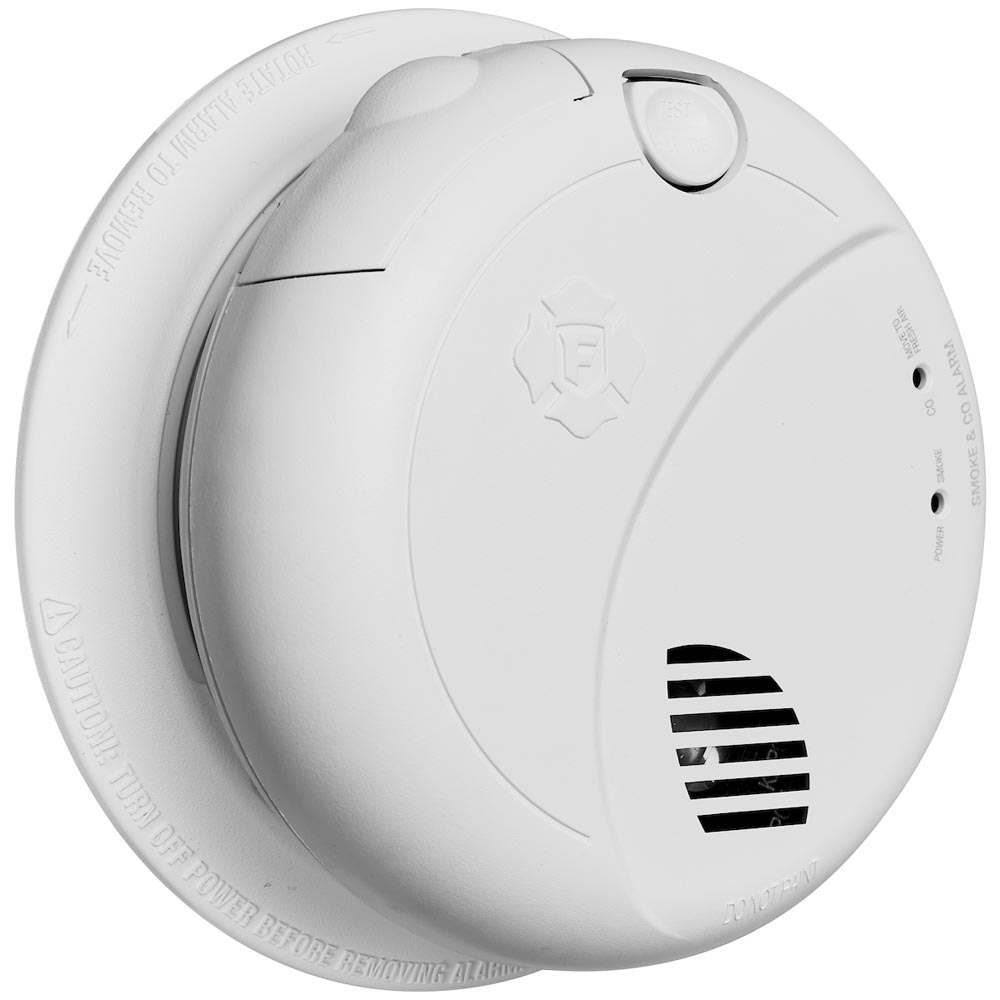

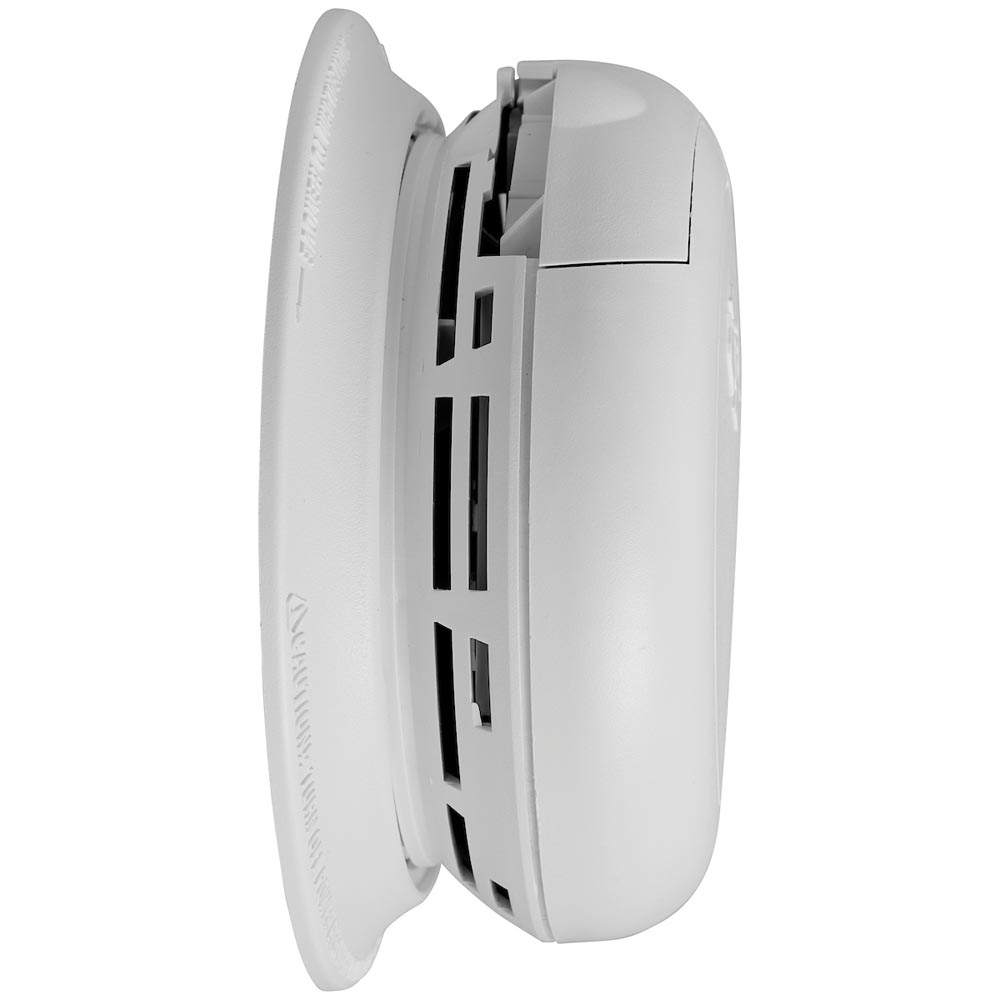

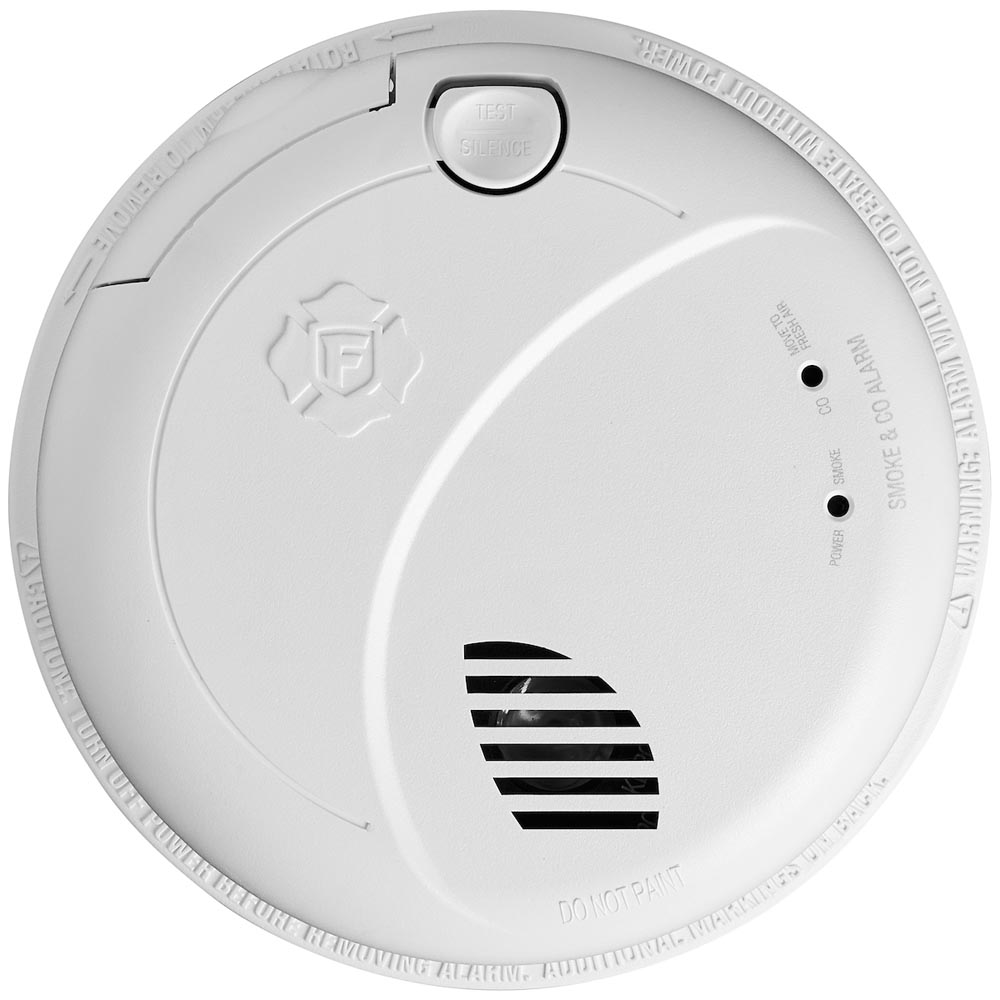

First Alert Precision Detection Interconnect Hardwired Smoke and CO Alarm with Voice and Location Alerts - SMCO100V-AC (1046778)

Interconnect Hardwired Smoke & CO Alarm with Battery Backup & Voice

Be alerted to the type of danger and its location in your home with the First Alert SMCO100V-AC Interconnect Hardwired Smoke & Carbon Monoxide Alarm. Easily install the combination detector using the quick connect plug. Plus, interconnect compatible alarms to create a whole home alarm system to help provide an early warning. The detector is also equipped with First Alert's Precision Detection advanced sensing technology and meets new industry standards.

Reliable 2-in-1 Smoke & CO Protection

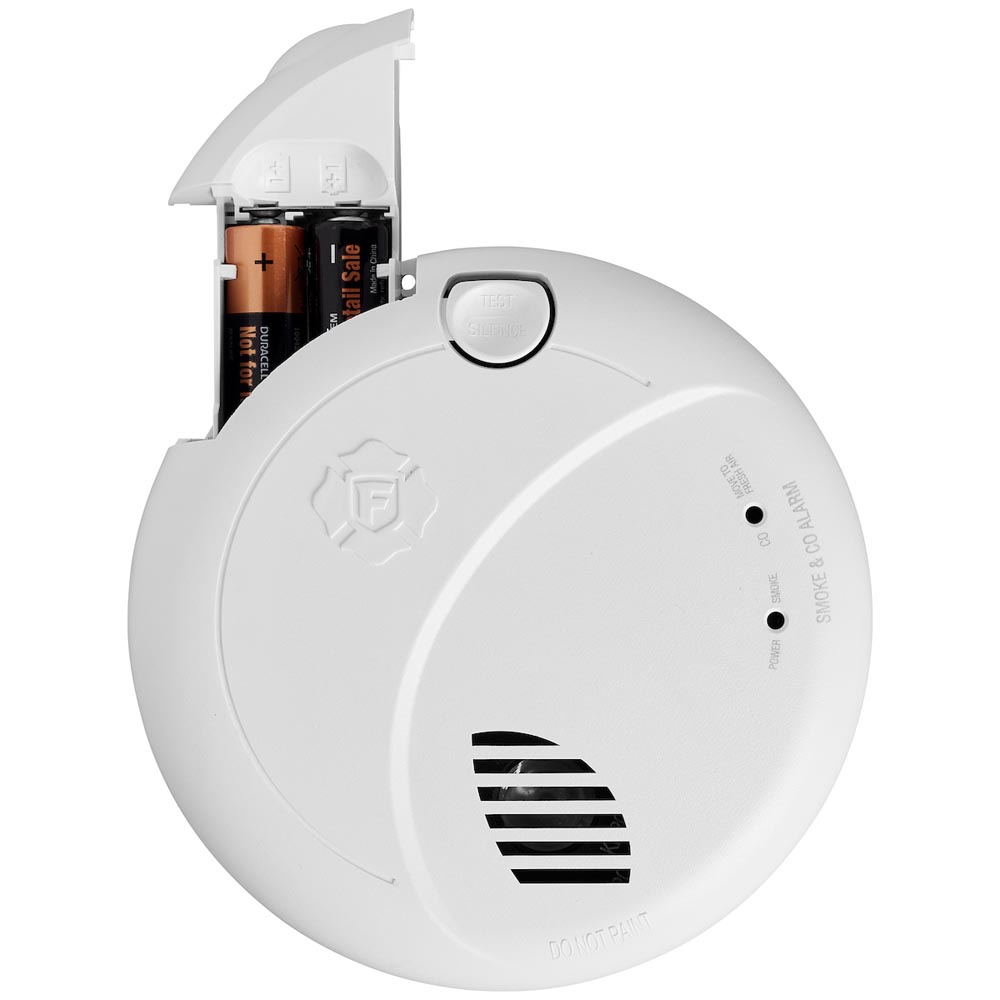

The SMCO100V-AC Interconnected Hardwired Smoke and CO Alarm with Battery Backup and Voice Alerts is a premium choice for protection against both threats. Easily add protection throughout your home or replace existing hardwired alarms using the hardwired quick connect plug - no rewiring needed. The alarm is also equipped with a backup battery to provide continuous protection in the event of a power outage.

Voice & Locations Alerts

If smoke or carbon monoxide is detected, the detector will sound and a friendly voice will tell you the type and location of danger in your home. Easy to program and operate, the combination fire and CO alarm allows you to choose between 11 pre-programmed home locations.

Early Warning Interconnect

Install as a standalone combination alarm or interconnect multiple detectors together to create an alarm system throughout your home. When one hardwired interconnected alarm sounds, all connected detectors will sound to help provide an early warning. Integrate with up to 12 other First Alert or BRK detectors and 6 other compatible devices. Please reference user's manual for compatible alarms. If the alarm system sounds, the latching alarm indicator will visually identify the unit that initiated the alarm.

Convenient Safety Features

Ensure the Interconnected Hardwired Smoke and CO Alarm is working properly using the single test/silence button located on the front of the alarm. The detector’s batteries should be replaced regularly and alarms themselves should be replaced at least every 10 years. The low battery and end-of-life warnings will help notify you when it’s time to replace the 8th generation detector. See user's manual for information on how and when to test and replace alarms. Help stop unwanted removal of the backup battery or detector using the optional locking features.

Upgrade to 8th Generation Detectors

First Alert's Precision Detection Advanced Sensing Technology meets the latest safety standards set by UL 217 8^th Edition. This means this combination alarm is better at distinguishing between harmless cooking smoke and real fires. Additionally, 8^th edition alarms can detect smoke from burning synthetic materials, which are common in modern homes. This translates to fewer bothersome false alarms and a crucial early warning in case of a fire emergency.

First Alert Interconnect Hardwired Smoke and CO Alarm with Battery Backup & Voice SMCO100V-AC

Recommended replacement for the following model:

SC7010BV

How to Install First Alert SMCO100V-AC Hardwired Smoke & CO Alarms:

In this guide, we'll be showing you how to install First Alert Hardwired Smoke and Carbon Monoxide Alarms. Here are a few items you'll need before starting the installation process: Needle-nose pliers or utility knife, screwdriver, wire stripper, wire nuts and a ladder.

Hardwired Smoke or Carbon Monoxide Alarm Requirements:

• 120V household electrical circuit (unswitched 120VAC)
• Standard wiring junction box to a 4 in. (10 cm) size, on either the ceiling or wall
• Selecting an appropriate location to install your smoke and carbon monoxide alarms (see below guidelines for additional information):

  • When installing an alarm on the wall, the top edge of an alarm should be placed between 4 in. (100 mm) and 12 in. (300 mm) from the wall/ceiling line.
  • When installing an alarm on the ceiling, place the alarm as close to the center as possible.
  • In either case, install the alarm at least 4 in. (100 mm) from where the wall and ceiling meet.
  • First Alert Smoke Alarm FAQs
  • First Alert Carbon Monoxide Alarm FAQs

Connecting First Alert Hardwired Alarms to 120V Wiring

To begin, turn off power at the junction box and connect your alarm to the building's electrical wiring.

1. Locate the junction box and turn off power

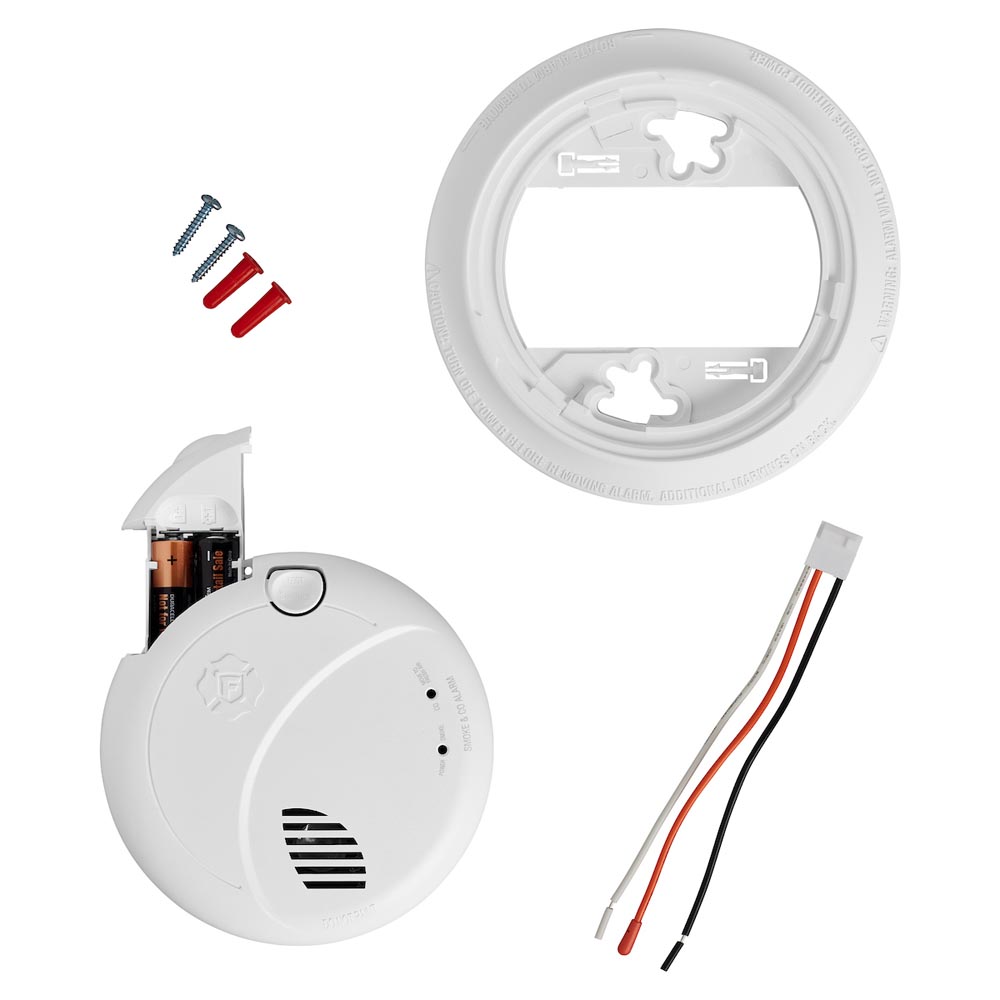

2. Remove the power connector from the new alarm's packaging
3. Using wire nuts, attach the hot (black), neutral (white), and interconnect (orange) wires

Mounting First Alert Hardwired Alarms

1. Secure the mounting bracket to the ceiling or wall using screws (included in the package)
2. Insert the power connector into the plug on the back of your alarm
3. Tuck any hanging wires into the junction box
4. Position the base of the alarm onto the bracket and turn it clockwise until it's secured
5. Remove the pull-tab to activate the backup battery

Installing Additional and/or Interconnecting First Alert Hardwired Alarms

If you are installing more smoke or carbon monoxide alarms, you'll want to repeat the process throughout the building. Interconnected smoke and co alarms must meet all requirements:

• The same fuse or circuit breaker must power all interconnected alarms.

• Up to 18 compatible detectors can interconnect, with a limit of 12 smoke alarms.

• The total length of wire interconnecting the alarms should be less than 1,000 ft. (300 meters). This type of wire is commonly available at hardware and electrical supply stores.

• All wiring must conform to all local electrical codes and NFPA 70 (NEC). Refer to NFPA 72, NFPA 101, and your local building code for more information.

• Interconnect wiring diagram:

If you have any doubts or reservations about these interconnect requirements, please contact an experienced electrician to install your wiring and hardwired alarms.

Restoring Power and Testing Hardwired Alarms

Once you've installed your hardwired alarms, you'll want to restore power to the junction box. Under regular operation, the power indicator light on the alarm will shine/blink to indicate that it is receiving AC power.

Here's how you can test standalone or interconnected alarms:

• Standalone Alarms: Press and hold the Test/Silence button until the unit triggers an alarm.

• Interconnected Alarms: Press and hold the Test/Silence button until the first unit triggers an alarm. All interconnected detectors should sound off. Repeat this process to test each alarm in the interconnected series.
