First Alert Precision Detection Interconnect Hardwired Smoke Alarm with 10-Year Battery Backup - SMI105-AC (1046853)

Interconnect Hardwired Smoke Alarm with 10-Year Battery Backup

The First Alert SMI105-AC Interconnect Hardwired Smoke Alarm with 10-Year Battery Backup uses First Alert's Precision Detection advanced sensing technology and meets the latest industry standards. Interconnect multiple alarms together to help provide an early warning throughout your whole home. Secure peace of mind in knowing the 10-year battery backup provides continuous protection in the event of a power outage.

Easy To Install Hardwired Alarm

The SMI105-AC Interconnect Hardwired Smoke Alarm with 10-Year Battery Backup has superior features. This 8th generation smoke detector includes a hardwire quick connect plug to help streamline the installation and replacement process. There is no need to rewire. Use the test/silence button to make sure the alarm is functioning correctly. The alarm also includes an end of life warning that will notify you when it’s time to replace.

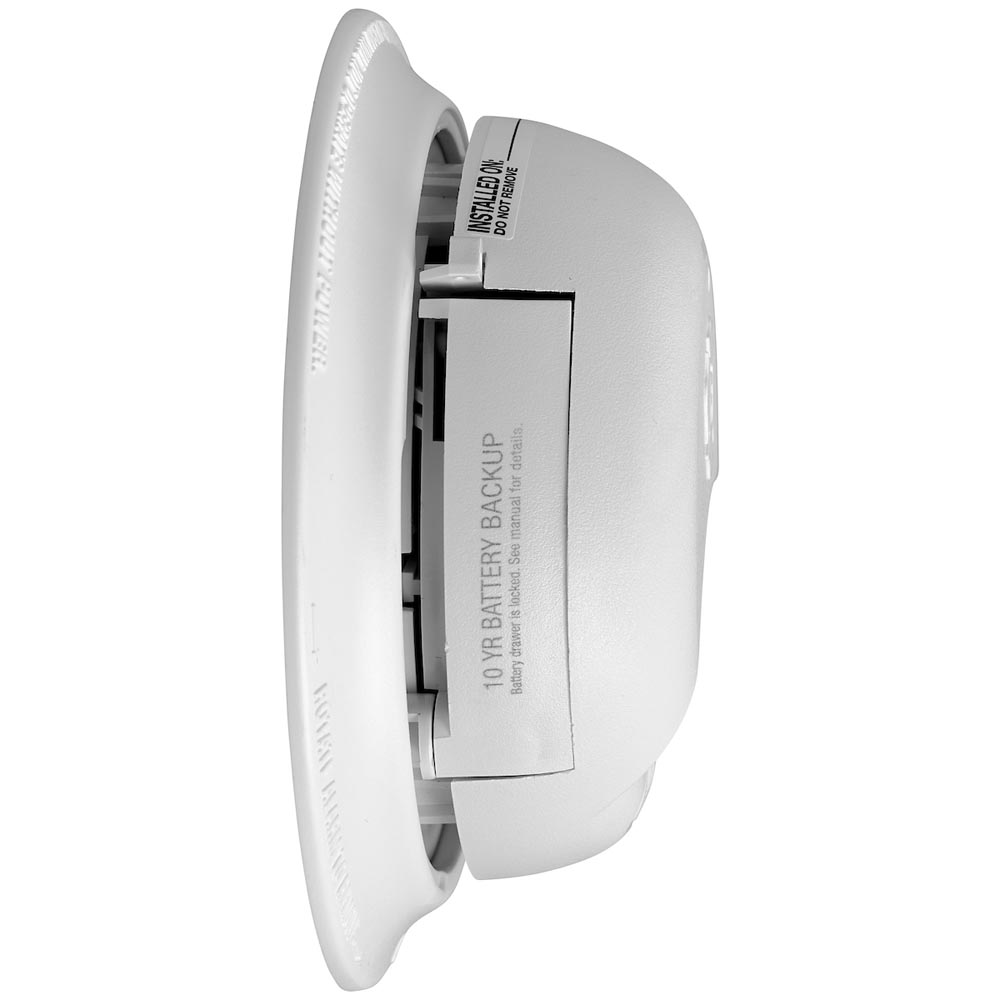

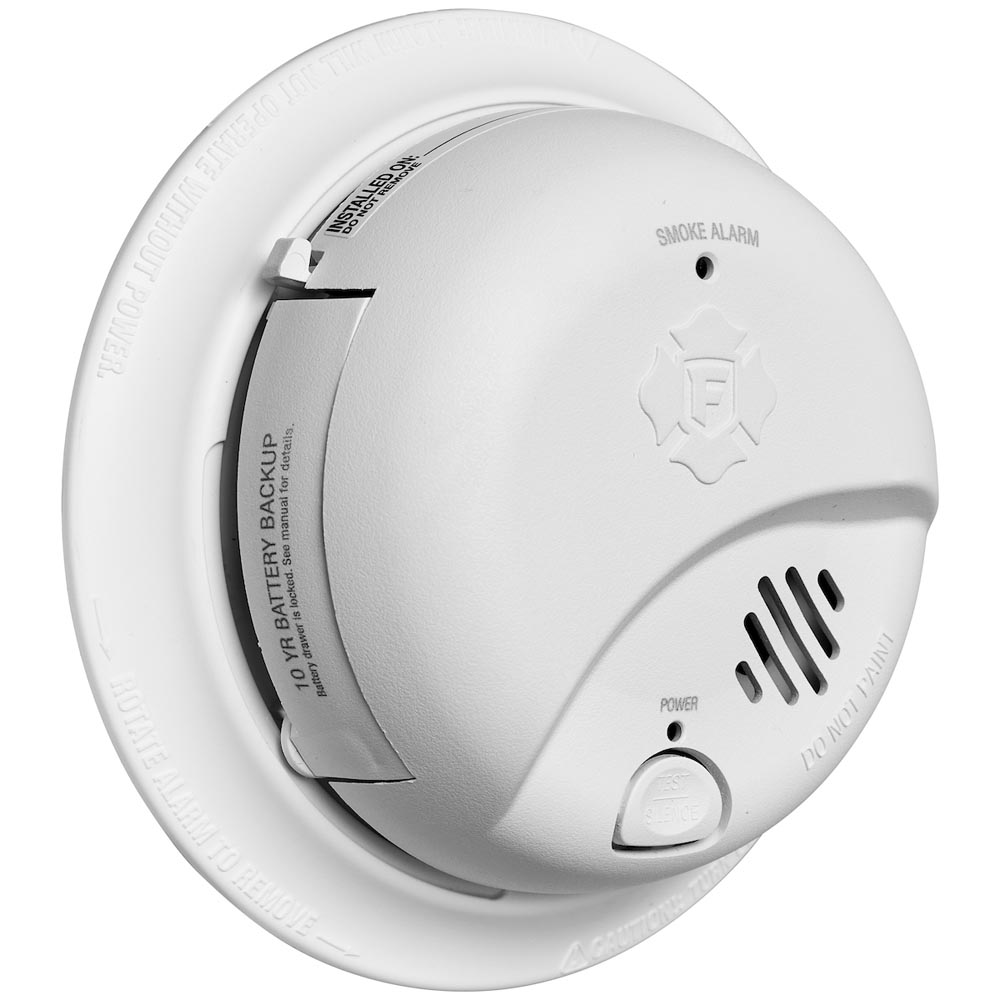

Backup Battery Provides Continuous Protection

In the event of a power outage, the hardwired smoke alarm is equipped with a 10-year battery backup for continued protection. The 10-year backup battery means no battery replacements are necessary for the life of the detector - eliminating low battery chirps and the hassle of replacing the batteries. Help stop unwanted removal of the alarm by using the optional locking feature.

Hardwired Early Warning Interconnect

Install as a single smoke detector or interconnect multiple alarms together to create an alarm system throughout your whole home. All hardwired interconnected detectors will sound when one in the series is initiated to help provide an early warning and time to safely escape. Integrate with up to 12 other First Alert or BRK alarms and 6 other compatible devices. Please reference user's manual for compatible alarms. The latching detector indicator will visually distinguish the unit that initiated the alarm if the system sounds.

Upgrade to 8th Generation Alarms

First Alert's Precision Detection Advanced Sensing Technology meets the latest safety standards set by UL 217 8^th Edition. This means this smoke alarm is better at distinguishing between harmless cooking smoke and real fires. Additionally, 8^th edition smoke alarms can detect smoke from burning synthetic materials, which are common in modern homes. This translates to fewer bothersome false alarms and a crucial early warning in case of a fire emergency.

First Alert Interconnect Hardwired Smoke Alarm with 10 Year Battery SMI105-AC

Recommended replacement for the following model:

9120LBL

How to Install First Alert SMI105-AC Precision Detection Hardwired Smoke Alarms:

In this guide, we'll be showing you how to install First Alert Hardwired Smoke and Carbon Monoxide Alarms. Here are a few items you'll need before starting the installation process: Needle-nose pliers or utility knife, screwdriver, wire stripper, wire nuts and a ladder.

Hardwired Smoke or Carbon Monoxide Alarm Requirements:

• 120V household electrical circuit (unswitched 120VAC)
• Standard wiring junction box to a 4 in. (10 cm) size, on either the ceiling or wall
• Selecting an appropriate location to install your smoke and carbon monoxide alarms (see below guidelines for additional information):

  • When installing an alarm on the wall, the top edge of an alarm should be placed between 4 in. (100 mm) and 12 in. (300 mm) from the wall/ceiling line.
  • When installing an alarm on the ceiling, place the alarm as close to the center as possible.
  • In either case, install the alarm at least 4 in. (100 mm) from where the wall and ceiling meet.
  • First Alert Smoke Alarm FAQs
  • First Alert Carbon Monoxide Alarm FAQs

Connecting First Alert Hardwired Alarms to 120V Wiring

To begin, turn off power at the junction box and connect your alarm to the building's electrical wiring.

1. Locate the junction box and turn off power

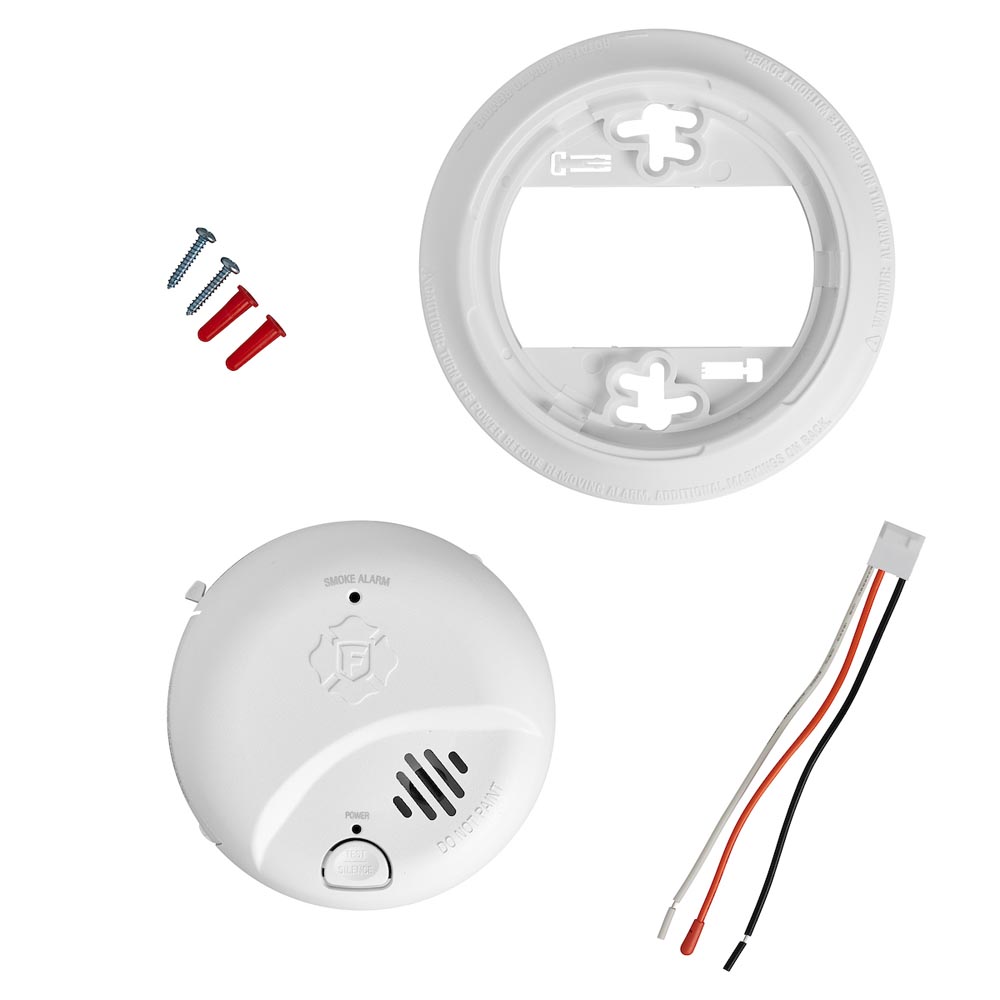

2. Remove the power connector from the new alarm's packaging
3. Using wire nuts, attach the hot (black), neutral (white), and interconnect (orange) wires

Mounting First Alert Hardwired Alarms

1. Secure the mounting bracket to the ceiling or wall using screws (included in the package)
2. Insert the power connector into the plug on the back of your alarm
3. Tuck any hanging wires into the junction box
4. Position the base of the alarm onto the bracket and turn it clockwise until it's secured
5. Remove the pull-tab to activate the backup battery

Installing Additional and/or Interconnecting First Alert Hardwired Alarms

If you are installing more smoke or carbon monoxide alarms, you'll want to repeat the process throughout the building. Interconnected smoke and co alarms must meet all requirements:

• The same fuse or circuit breaker must power all interconnected alarms.

• Up to 18 compatible detectors can interconnect, with a limit of 12 smoke alarms.

• The total length of wire interconnecting the alarms should be less than 1,000 ft. (300 meters). This type of wire is commonly available at hardware and electrical supply stores.

• All wiring must conform to all local electrical codes and NFPA 70 (NEC). Refer to NFPA 72, NFPA 101, and your local building code for more information.

• Interconnect wiring diagram:

If you have any doubts or reservations about these interconnect requirements, please contact an experienced electrician to install your wiring and hardwired alarms.

Restoring Power and Testing Hardwired Alarms

Once you've installed your hardwired alarms, you'll want to restore power to the junction box. Under regular operation, the power indicator light on the alarm will shine/blink to indicate that it is receiving AC power.

Here's how you can test standalone or interconnected alarms:

• Standalone Alarms: Press and hold the Test/Silence button until the unit triggers an alarm.

• Interconnected Alarms: Press and hold the Test/Silence button until the first unit triggers an alarm. All interconnected detectors should sound off. Repeat this process to test each alarm in the interconnected series.
