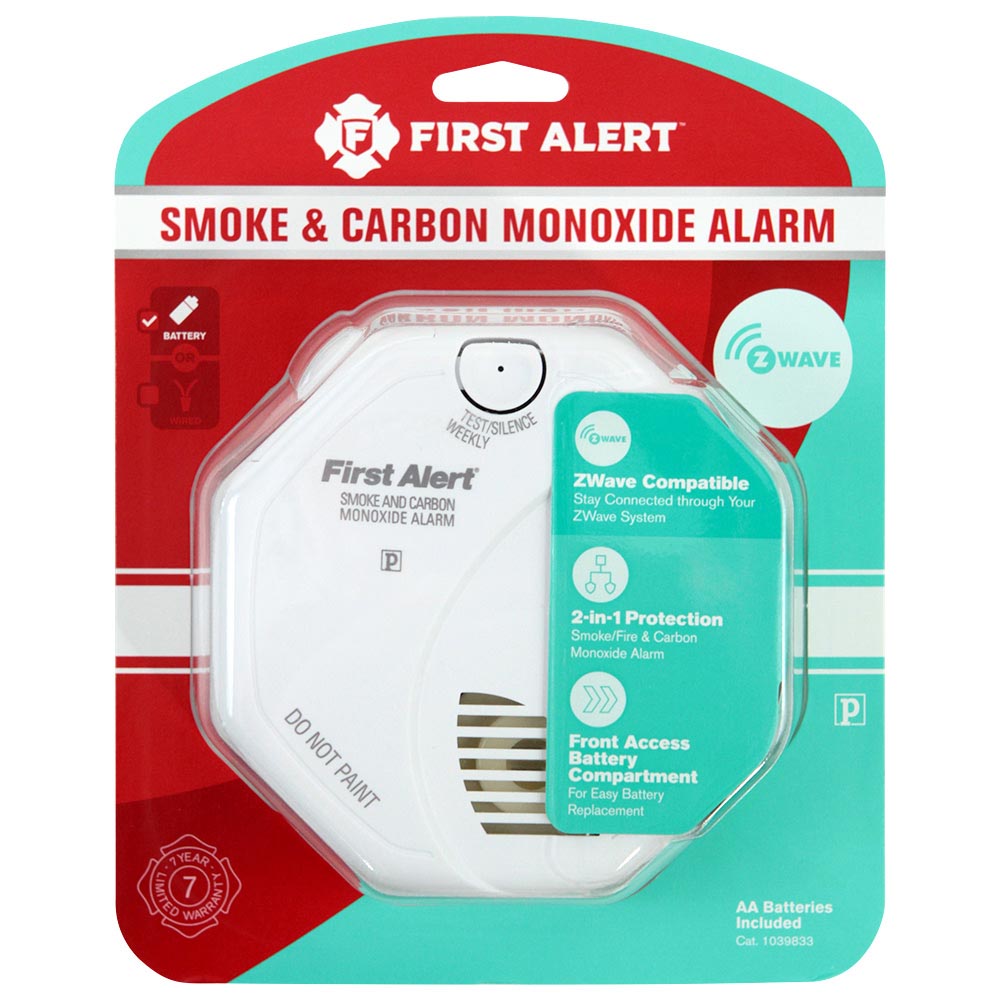

First Alert Z-Wave Enabled Battery Smoke & Carbon Monoxide Combo Alarm (Works with the Ring Alarm Security Kit), ZCOMBO-G (1039833)

Z-Wave Enabled Battery Smoke & CO Combo Alarm (Works with the Ring Alarm Security Kit)

This easy-to-install First Alert Z-Wave Smoke and Carbon Monoxide Alarm is designed for compatibility with the Ring Alarm Security Kit. The z-wave smoke/co alarm can be implemented in residential and institutional applications. Installation settings include sleeping areas within hospitals, hotels, motels, dormitories and other multi-family dwellings that are defined in standard NFPA 101. The First Alert ZCOMBO-G Smoke and Carbon Monoxide Detector has been fully tested and complies with UL217, UL2034, CSFM, NFPA 720, NFPA 101 and other agencies that model their codes after the above agencies. The combination alarm meets building codes that require the use of a battery operated z-wave wireless smoke and co detector. This First Alert Z-Wave Combination Alarm includes silence features and meets the model building codes published by the ICC.

The First Alert Z-Wave Combo Alarm includes: an insect screened photoelectric smoke sensing chamber, electrochemical carbon monoxide sensor, 85dB horn, supervised 3V (2 AA batteries) power supply, full function test switch and a silence feature. This combination alarm operates with 3rd party, certified Z-Wave devices enabled with the First Alert protocol and the basic command class required by all Z-Wave devices. Fulfilling the requirements set by the Device Class spec, this command class does not have to be mapped to any particular functionality for this device. The First Alert Z-Wave Combo Alarm supports one association group with up to 1 node and sends its alarms to that group. This alarm supports configuration parameter #1, which has a size of 1, a default value of 0 and when set to 1 causes the device to send double alarm messages.

The First Alert Z-Wave Enabled Battery Smoke & Carbon Monoxide Combo Alarm includes a battery drawer that prevents battery removal and tamper resistant locking pins that lock the alarm to the mounting bracket. This First Alert Combination Alarm is an ideal fit for any number of applications that include apartments, dormitories and hotels. Designed for wall or ceiling mounting, this alarm includes all of the required mounting anchors and screws needed for easy installation. The First Alert Z-Wave Combo Alarm is compatible with the following:

• Works with Nexia Home Intelligence Z-Wave systems
• Works with the Ring Alarm Security Kit

**Connect the First Alert Z-Wave Combination Smoke and CO Alarm to your Ring Alarm Base Station and protect your home from potential disaster. The device seamlessly integrates with the Ring App, so you'll get instant alerts when smoke or carbon monoxide is detected.

First Alert Z-Wave Enabled Battery Smoke & Carbon Monoxide Combo Alarm ZCOMBO-G

The First Alert Z-Wave alarm will operate with 3rd party, certified Z-Wave devices. Basic command class required by all Z-Wave devices. By the requirements of the Device Class spec, this command class does not have to be mapped to any particular functionality for this device.

Z-Wave Inclusion Process

1. Slide battery door open.
2. Insert batteries checking the correct orientation.
3. Press and hold the test button. Keep it held down as you slide the battery drawer closed. You may then release the button.

Z-Wave Exclusion Process:

1. Slide battery door open.
2. Remove and re-insert batteries checking the correct orientation.
3. Press and hold the test button. Keep it held down as you slide the battery drawer closed. You may then release the button.

Things to note:

• The alarm will remain awake for 30 seconds on inclusion.
• The alarm supports one association group with up to 1 node, and sends its alarms to that group.
• The alarm supports configuration parameter #1, which has a size of 1, a default value of 0, and when set to 1 causes the device to send double alarm messages.

Resetting the device:
If the device is powered up with the test button held down for 10+ seconds, the device will reset all Z-Wave settings and leave the network. NOTE: The device will not remain awake after resetting and will go into standby mode.

Z-Wave Mesh Network Limitations:

1. Alarms are single stationed Alarms and are not interconnected to each other.
2. Only initiating Alarms will sound.
3. Z-Wave system is not listed as a life safety system. Mesh network system only provides supplemental notifications and should not be counted on for life safety.
